RAM® Mounts Rail Mount W/ Double Socket Arm(Skuidram B 149z Qu1uskuid Ram Mounts Rail Mount W Double Socket Arm)

Description

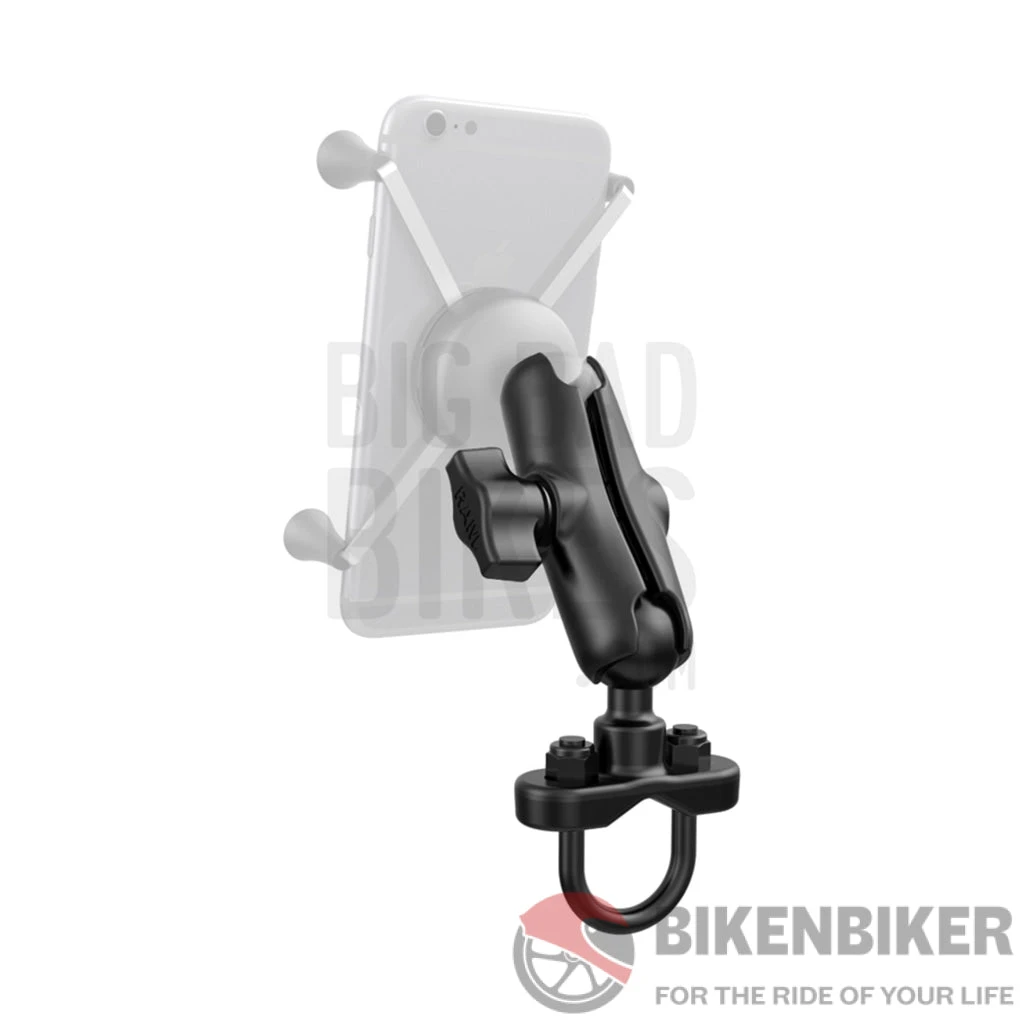

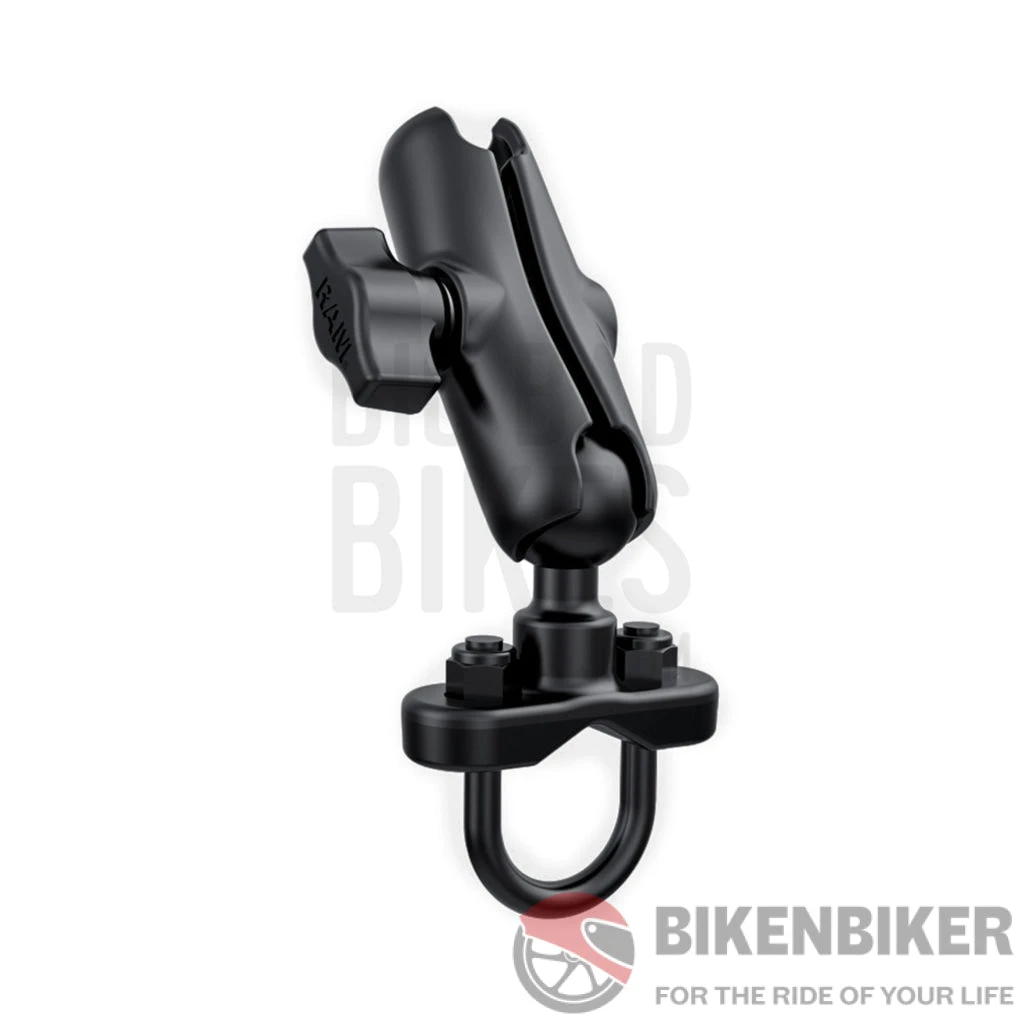

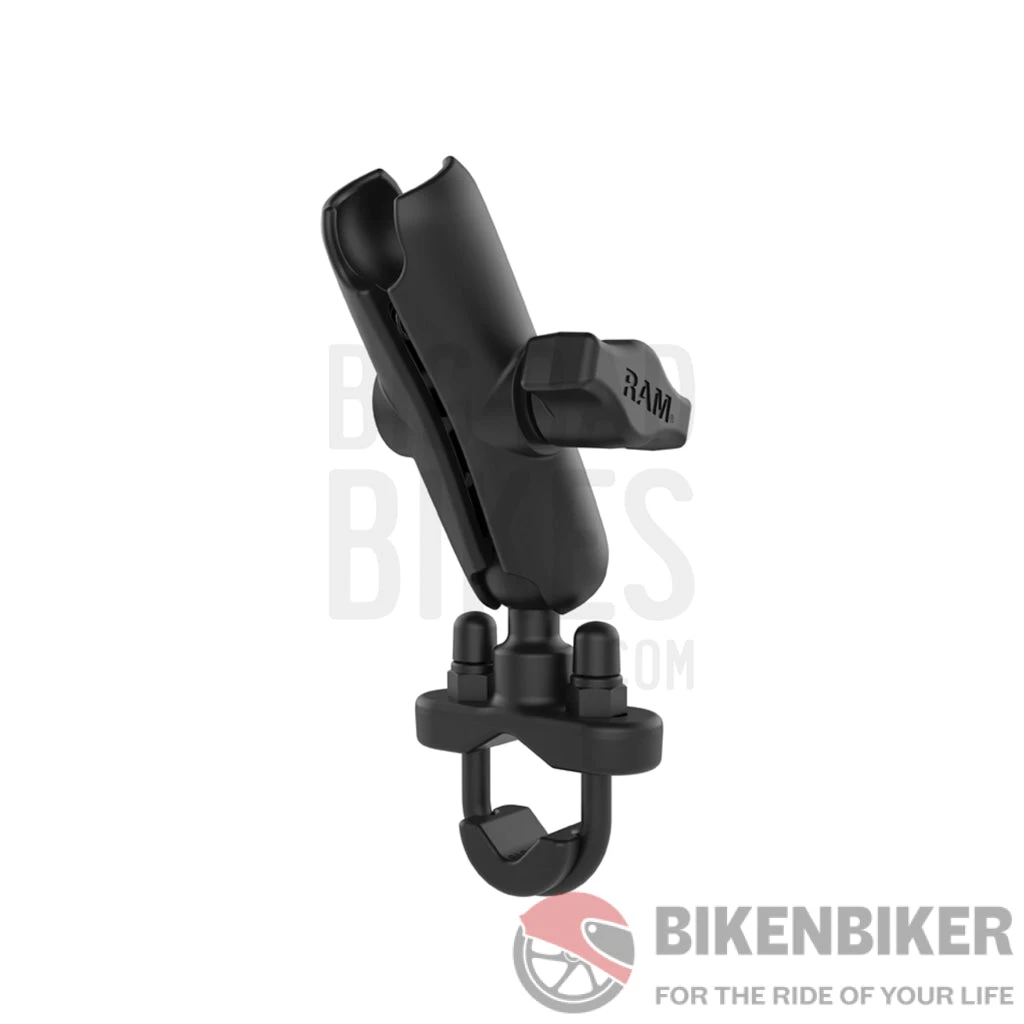

RAM® Mounts Rail Mount w/ Double Socket Arm

The RAM Handlebar U-Bolt Base with Double Socket Arm consists of a zinc coated U-bolt base and double socket arm. The mount is designed with a RAM 25.4mm diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm. The zinc coated U-bolt base accommodates rails from 12.7mm to 31.75mm in diameter and includes black cover caps to be placed over the exposed ends of the U-bolt. This is a universal mounting solution for the RAM cradles with a 25.4mm ball.

The RAM Handlebar U-Bolt Base with Double Socket Arm is made of zinc coated, marine-grade aluminium for durability and reliability in the most demanding environments.

Highlights

Universal mounting solution for the RAM cradles with a 1 inch ball
Consists of a U-bolt base and double socket arm
Made of zinc-coated, marine-grade aluminium

Required Accessories

Mount Base & Double Socket Arm Only. Cradle/ Holder for Device sold separately.

Additional Information
RAM® Handlebar U-Bolt Base with Double Socket Arm
https://youtu.be/is5CFpXC198
Source: RAM Mounts

Product Specifications

Material: Marine-grade Aluminium / Rubber
Surface: Zinc coated
Color: Black
Clamp Range: 12.7mm – 31.75mm
Socket-to-Socket Length: 76.2mm
Ball / Socket Size: B Size (25.4mm)
Weight: 0.24kgs
Maximum Load:
Standard Use: 0.90kgs
Heavy-Duty Use: 0.45kgs

What’s in the box?

RAM Handlebar U-Bolt Base x 1
RAM Double Socket Arm x 1
Hardware included:
1/4″-20 U-Bolt for .5″ – 1″ Rails x 1
1/4″-20 U-Bolt for 1″ – 1.25″ Rails x 1
1/4″-20 Nylock Nuts x 2
Rubber Caps x 2
U-Bolt Spacer x 1

Other Details

Brand – RAM Mounts, USA

Part No. – RAM-B-149Z-QU1U
